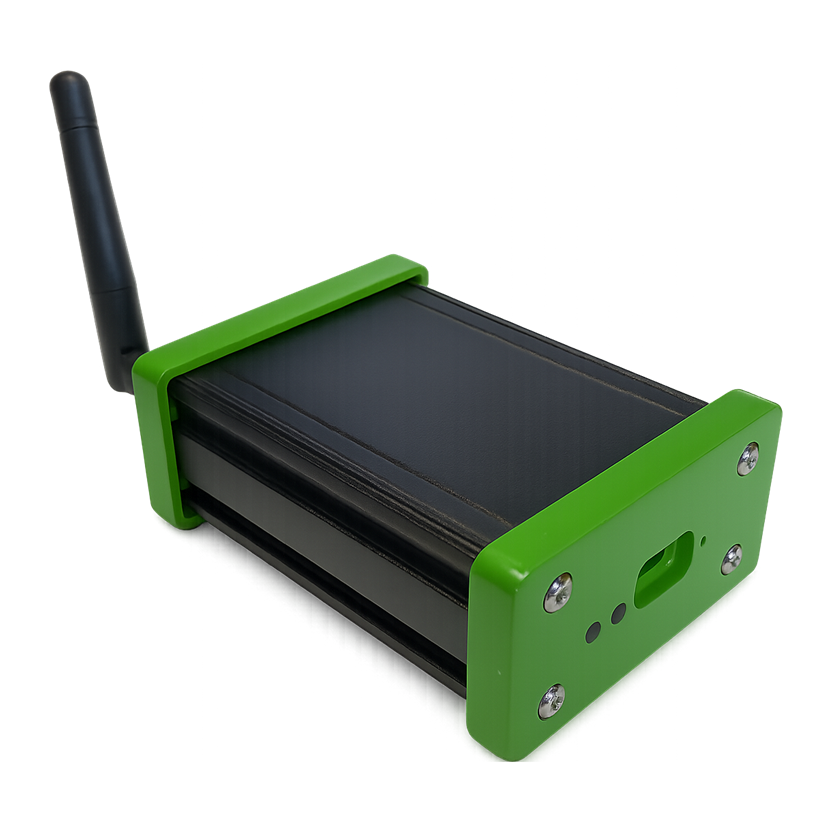

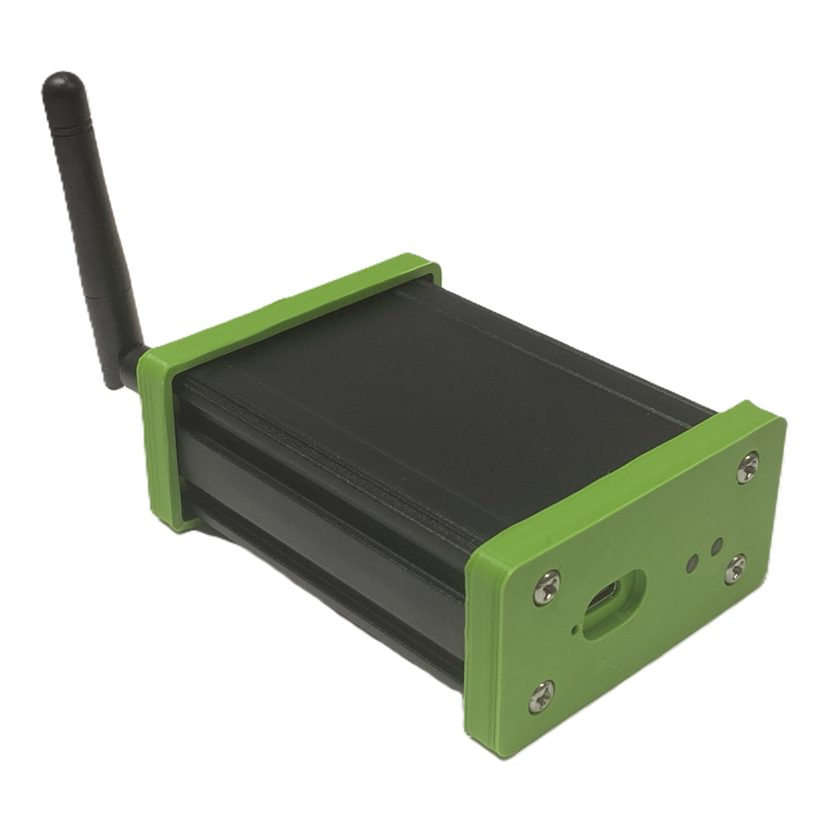

LOCANOS Base Station Lite

Affordable and accurate triple-band RTK GNSS base station

LOCANOS Base Station Lite is an easy-to-use, self-contained RTK GNSS base station built for practical everyday use. Set it up at your home, farm or work site and start broadcasting RTK correction data in a matter of minutes!

The Lite model gives straightforward connectivity via Wi-Fi or Ethernet, plus an intuitive browser-based user interface for setup and monitoring on your mobile device or desktop.

For maximum flexibility, LOCANOS Base Station Lite supports simultaneous streams to multiple NTRIP casters – great for feeding your own network and external services at the same time.

Key features:

• Self-contained RTK GNSS base station
• Wi-Fi and Ethernet (option) connectivity
• Intuitive web user interface
• Easy configuration
• RTCM 3.X, NTRIP
• Multiple simultaneous data streams


Technical details:

• Triple-band
• GPS, Galileo, GLONASS, Beidou
• 5 V USB-C power supply
• GNSS antenna connector: SMA
• Operating temperature: 0 °C to +40 °C
• Ingress protection IP2X

GNSS signals:

• GPS: L1 C/A, L1C, L2P (Y), L2C, L5
• Galileo: E1, E5a, E5b, E6
• GLONASS: G1, G2, G3
• Beidou: B1l, B2l, B3l, B1C, B2a, B2b
• QZSS: L1 C/A, L1C, L2C, L5
• NavIC: L5
